At LabSPX, we are committed to bringing innovative and efficient solutions to laboratories. Our Smart Lab Solutions are designed to streamline processes, enhance accuracy, and boost productivity.
| Title | Value |
|---|---|
| Liquids and culture media | Sterilize your liquid loads professionally using Fâ‚€ and a flexible probe. |
| Glassware, plastic and metal objects | Thanks to the super-drying system you will significantly reduce drying time to obtain any load completely dry after processing. |
| Objects with complex geometries | The rapid multiple initial prevacuum pulses completely eliminate air pockets, allowing full steam penetration in highly complex loads and ensuring proper sterilization. The load will be dry at the end of the cycle. |
| Biohazardous waste | The bacteriological filter at the air inlet and outlet of the chamber enables the safe processing of biohazardous loads. |
| Laboratory waste bags | The rapid multiple initial prevacuum pulses completely eliminate air pockets, allowing full steam penetration in highly complex loads and ensuring proper sterilization. The load will be dry at the end of the cycle. |

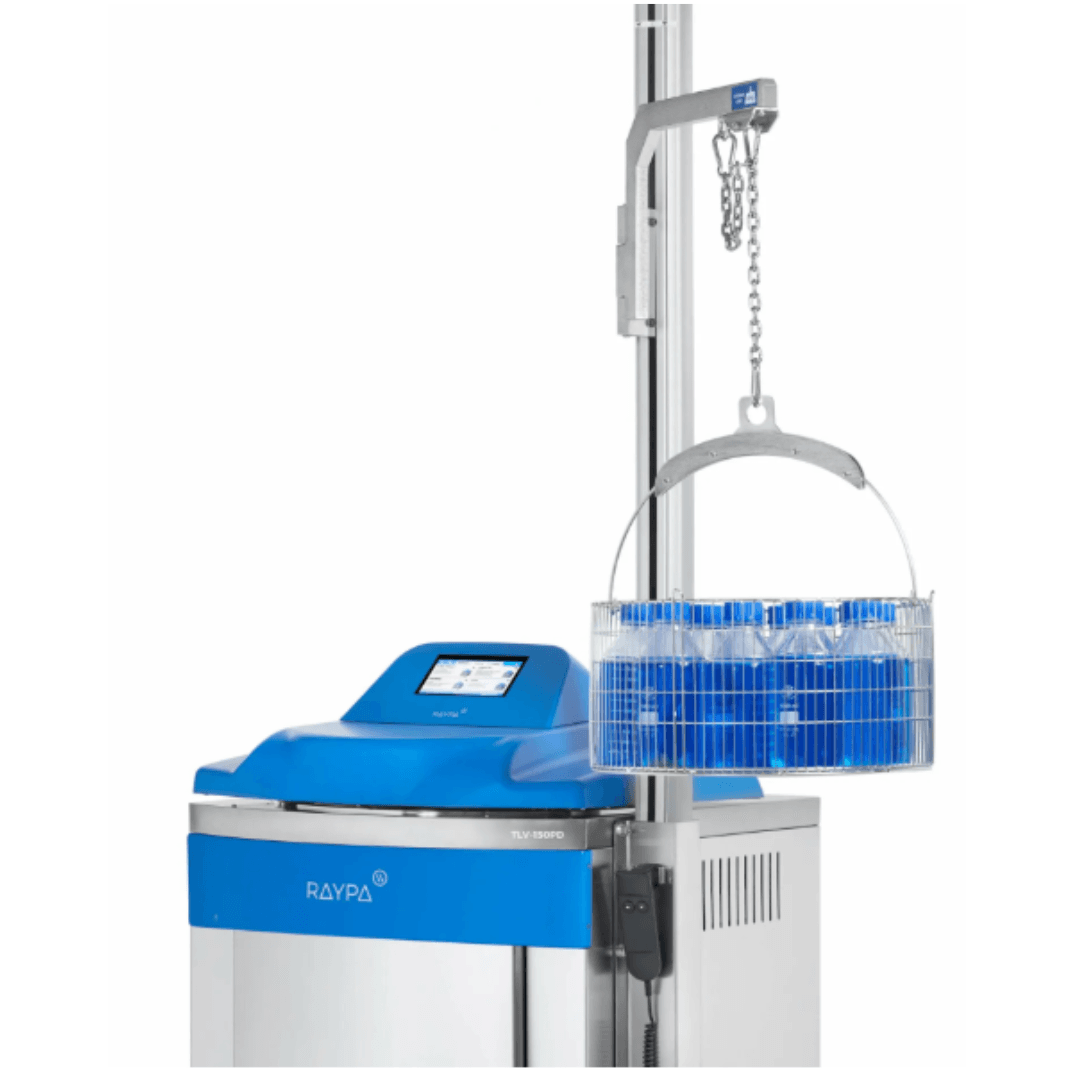

The TLV-PD Series vertical autoclaves feature a super-drying system with a heated jacket and high performance water ring pump, ensuring advanced sterilization of solids. These autoclaves are designed for industrial and research environments in the pharmaceutical, healthcare, chemical, and biotech industries. They effectively sterilize glass, porous materials, packaged solids, and objects with complex geometries.
All Top line vertical floor-standing autoclaves offer the most advanced connectivity in the market, ensuring compliance with the latest advancements in electronic records and data control. They are designed to operate within FDA, GMP, and GLP environments.
The final drying function, using a heating jacket and vacuum pump, ensures that the load is completely dry at the end of the cycle. This guarantees safe processing of porous solids and packaged objects. It eliminates the need to dry the load in an external oven.
These autoclaves feature state-of-the-art technology, including a push-button-controlled mechanically assisted door. Instant steam production is provided by the built-in steam generator, while air inlet and outlet are fitted with a bacteriological filter.
Equipped with a high-performance liquid ring vacuum pump, it ensures a faster fractionated prevacuum phase. The heating jacket allows for the complete drying of solid loads, and Fâ‚€-controlled sterilizations are achieved through integrated flexible probes.
Automatic filling from the water network and water-cooled direct discharge further enhance efficiency.
| TLV-50PD | TLV-75PD | TLV-110PD | TLV-150PD | |
| Total/usable volume of the chamber (L) | 58/56 | 83/81 | 124/118 | 169/155 |
| Usable dimensions of the chamber (Ø x H mm) | 400 x 450 | 400 x 650 | 500 x 600 | 500 x 850 |
| External dimensions (L x D x H mm) | 610 x 870 x 1060 | 610 x 870 x 1110 | 710 x 980 x 1160 | 710 x 980 x 1310 |
| Loading height (mm) | 815 | 865 | 915 | 1065 |
| Net weight (Kg) | 134 | 143 | 198 | 213 |
| Power (W) | 3600 | 3600 | 9000 | 9000 |
| Voltage* (V) | 230 | 230 | 400 | 400 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
