At LabSPX, we are committed to bringing innovative and efficient solutions to laboratories. Our Smart Lab Solutions are designed to streamline processes, enhance accuracy, and boost productivity.
Explore the advanced features and technical specifications of this product.
| Title | Value |
|---|---|
| Laboratory waste bags | The mechanical purge of air using the vacuum pump facilitates the posterior penetration of steam, facilitating the sterilization of bagged items. |
| Porous solids and enveloped objects | The initial pre-vacuum pulse facilitates steam access to porous loads and wrapped objects, enabling sterilization of high-complexity loads. They will be dry thanks to the final vacuum drying function. |
| Liquids and culture media | Specific programs for liquid loads. The agar mode maintains the temperature and prevents culture media from gelling. |
| Glassware | In programs for solid loads, the heating jacket and vacuum pump are activated at the end of the sterilization phase to completely dry the load. |

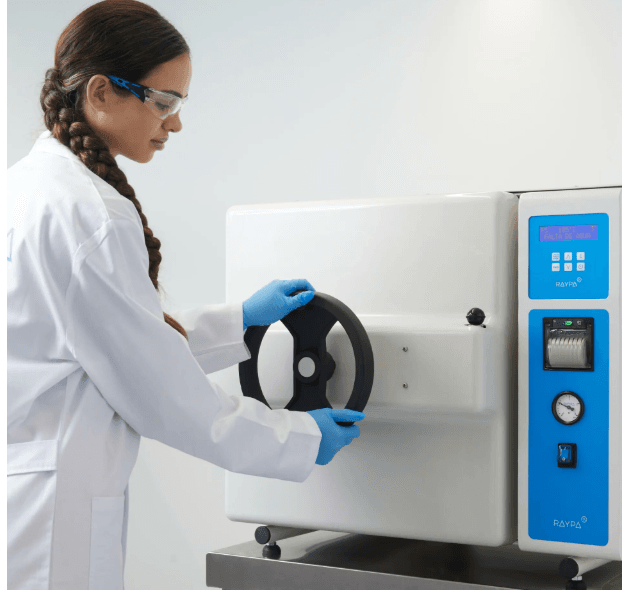

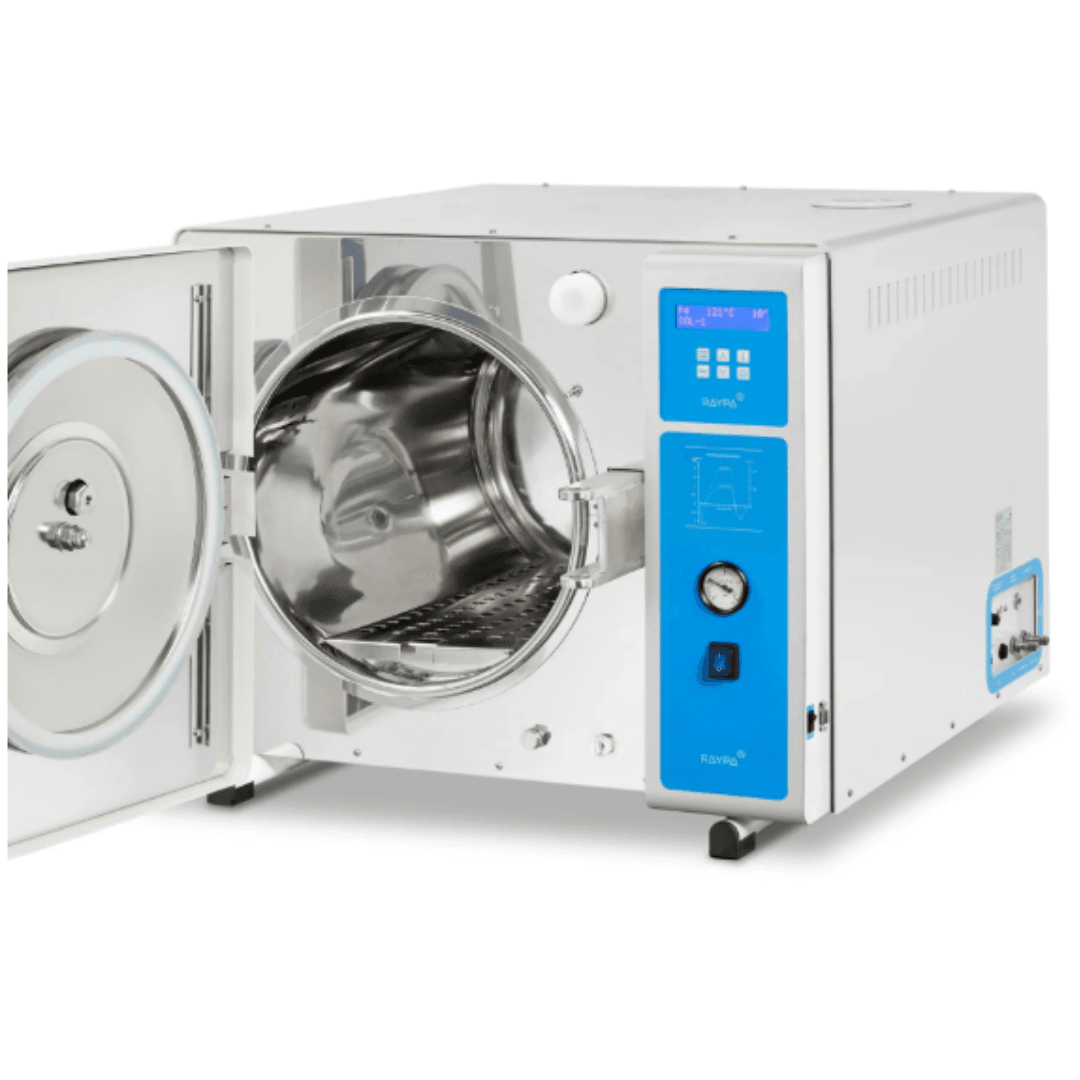

The AHS-DRY Series benchtop laboratory autoclaves with drying meet the sterilization needs of laboratories in industrial, educational, medical, and research facilities with the aim of boosting productivity and minimizing each sterilization cycle’s turnaround time.
These autoclaves sterilize bagged solid loads, porous and hollow objects, glass, plastics, metal utensils, and laboratory waste bags. They can also process liquids and culture media.
The ability to handle various types of loads, combined with the final drying feature and high automation, enhances efficiency in using resources like water, energy, and time. This leads to a cost-effective way to manage the laboratory’s workload.
Thanks to its final drying function, with a heating jacket and vacuum pump, the autoclave ensures a completely dry load at the end of the cycle, eliminating the need for external drying and saving handling time.
A vacuum pump removes air pockets for better steam penetration. Specific programs for liquids are available. Features include a bacteriological filter and an independent water tank, with an optional automatic filling kit for seamless operation.

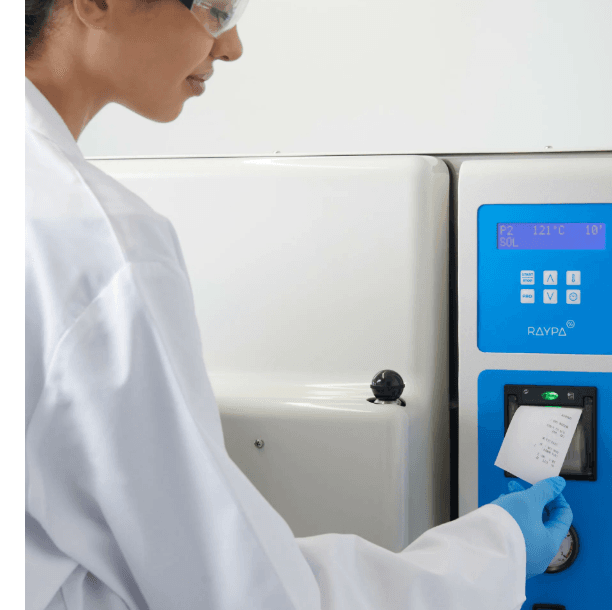

Choose the model and type of support that best suit your needs. Install a flexible probe to ensure more accurate and safe sterilization of liquids. Record and analyze your processes using dedicated software or an embedded printer. The system also allows for automated filling with purified water for added convenience.
| AH-21-L | AHS-50-DRY | AHS-75-DRY | |
| Total/usable volume of the chamber (L) | 22/21 | 55/50 | 79/75 |
| Usable dimensions of the chamber (Ø x D mm) | 210 x 430 | 360 x 400 | 360 x 600 |
| Volume of the built-in clean water tank (L) | 6 | 10 | 10 |
| External dimensions (L x D x H mm) | 560 x 660 x 425 | 805 x 805 x 650 | 805 x 1005 x 650 |
| Maximum numbers of trays | 4 or 5 | 5 | 5 |
| Tray size (L x D mm) | 190 x 350 | 315 x 330 | 315 x 530 |
| Net weight (Kg) | 49 | 109 | 126 |
| Power (W) | 2000 | 2800 | 3200 |
| Voltage* (V) | 230 | 230 | 230 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
