At LabSPX, we are committed to bringing innovative and efficient solutions to laboratories. Our Smart Lab Solutions are designed to streamline processes, enhance accuracy, and boost productivity.
Explore the advanced features and technical specifications of this product.
| Title | Value |
|---|---|
| Laboratory waste bags, porous solids and wrapped objects | The mechanical purge of air using the vacuum pump facilitates the posterior penetration of steam, facilitating the sterilization of porous items. At the end of the cycle, they will be dry thanks to the drying function. |
| Liquids and culture media | The agar mode maintains the temperature and prevents the culture media from gelling. Installing a flexible probe allows for more precise sterilization of liquid loads. |
| Plastic and metal objects & glassware | In programs for solid loads, the heating jacket and vacuum pump are activated at the end of the sterilization phase to completely dry the load. |

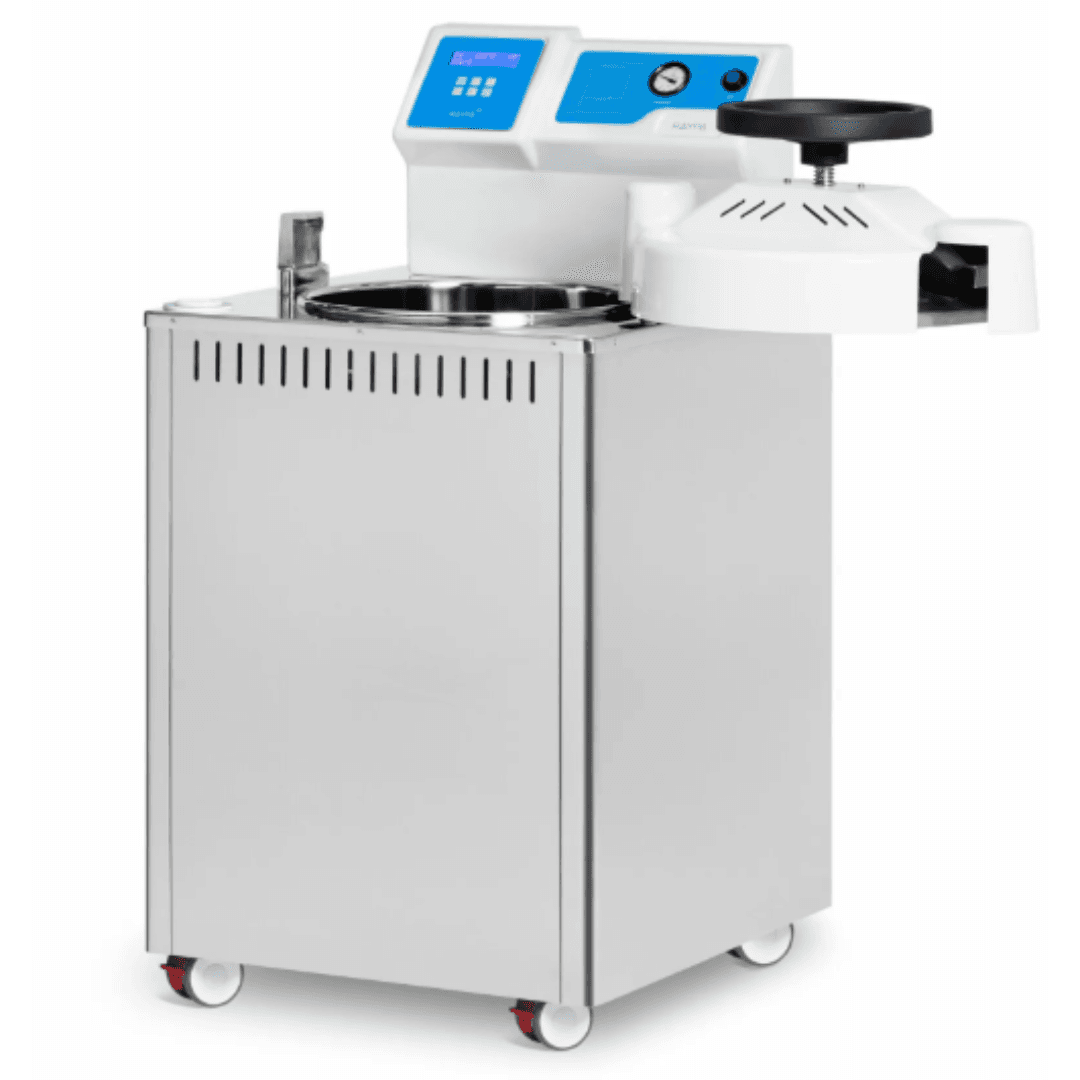

The AE-DRY Series vertical autoclaves with drying are designed for industrial, educational, and research facilities. They enhance productivity while minimizing sterilization cycle’s time. There is no need to dry the load in an external oven.
These autoclaves are designed for sterilizing bagged solid loads, porous and hollow objects, glass, plastics, metal utensils, and laboratory waste bags. They can also process liquids and culture media.
These autoclaves offer the versatility to process all types of loads, featuring a final drying function and the highest degree of automation. With greater efficiency in resource consumption such as water, energy, and operational time, they result in a cost-efficient solution for managing the laboratory’s workload.
Thanks to its final drying function using a heating jacket and vacuum pump, the load is completely dry at the end of the cycle. This eliminates the need for an external oven, enhancing convenience and reducing handling time.

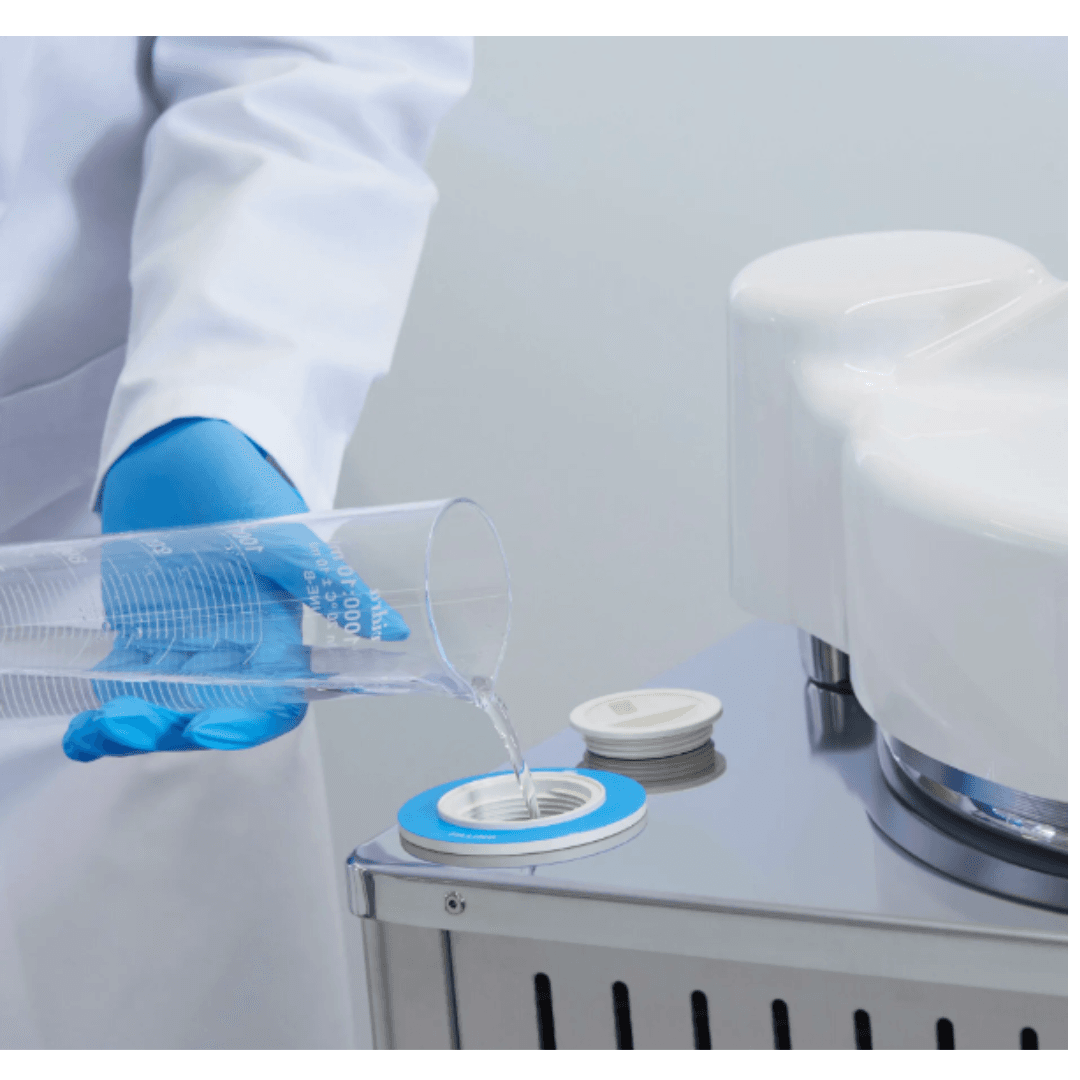

The mechanical purge, powered by a vacuum pump, effectively removes air pockets to enhance steam penetration. Specific programs for liquids ensure optimal sterilization. Additionally, the system includes a bacteriological filter and an independent water tank, and can be equipped with an automatic filling kit for seamless operation.

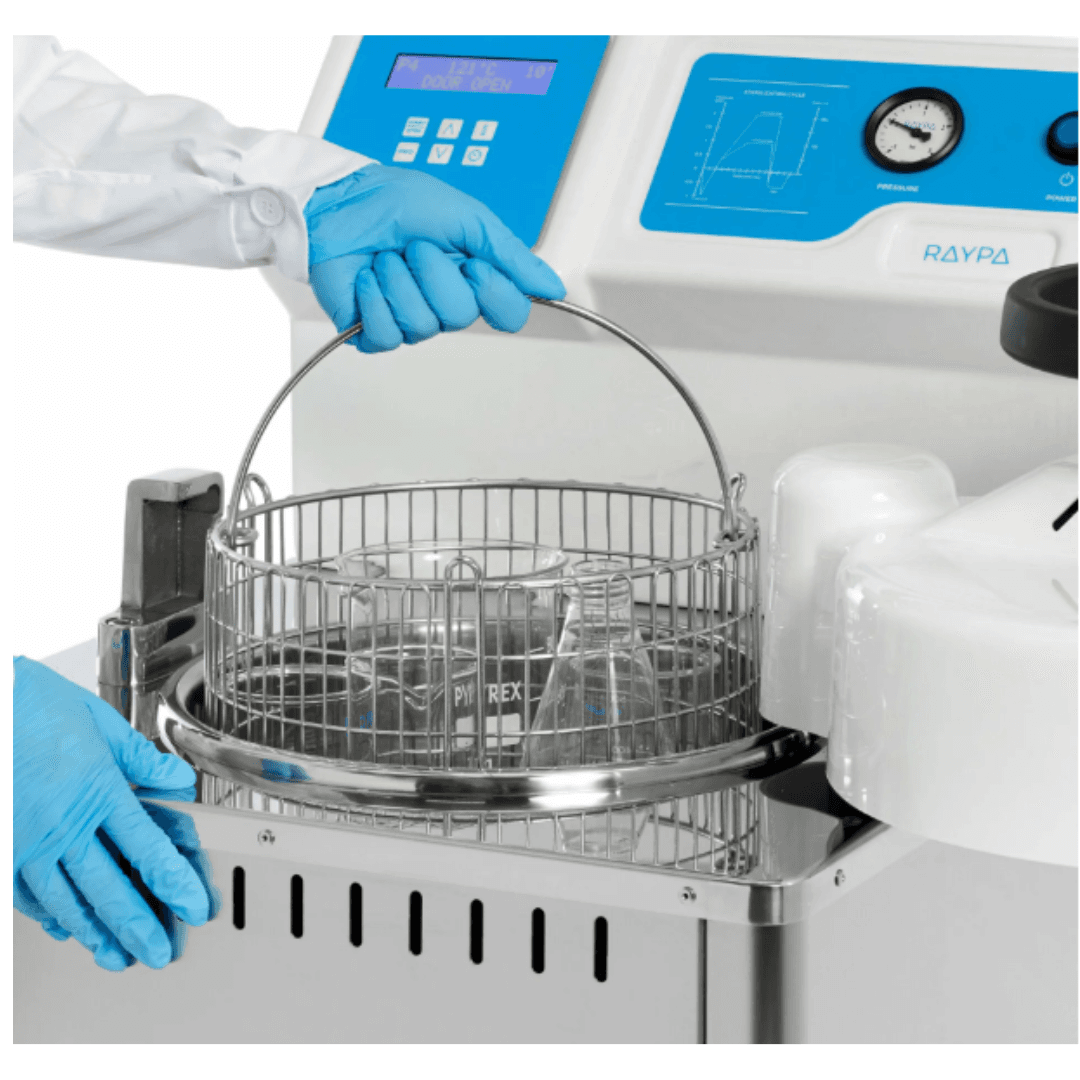

Choose the baskets and crane that best suit your requirements. For more precise and safe sterilization of liquids, install a flexible probe. Record and analyze your processes using dedicated software or an embedded printer. You can also enhance the heating capacity of your unit to save time.
| AE-28-DRY | AE-50-DRY | AE-75-DRY | AE-110-DRY | AE-150-DRY | |
| Total/usable volume of the chamber (L) | 33/31 | 55/50 | 79/75 | 115/110 | 175/153 |
| Usable dimensions of the chamber (Ø x H mm) | 300 x 440 | 300 x 710 | 400 x 600 | 400 x 850 | 500 x 760 |
| External dimensions (L x D x H mm) | 505 x 580 x 1110 | 505 x 580 x 1290 | 610 x 700 x 1185 | 610 x 700 x 1435 | 750 x 820 x 1400 |
| Loading height (mm) | 795 | 975 | 870 | 1120 | 1085 |
| Net weight (Kg) | 75 | 95 | 123 | 150 | 235 |
| Power (W) | 2000 or 3200 | 3200 or 5000 | 3200 or 6000 | 4500, 6000 or 9000 | 6000 or 9000 |
| Voltage* (V) | 230 | 230 | 230 | 400 | 400 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
